TRICONEX 3451 Relay Output Module Detailed Explanation
Product Overview
The TriconeX 3451 is a highly reliable relay output module and an important component of the Triconex Safety Instrumented System(SIS).It is mainly used to convert digital signals into mechanical switch actions,thereby controlling external devices or circuits,and is widely used in safety interlocking systems in industries such as petrochemicals,power,metallurgy,etc.

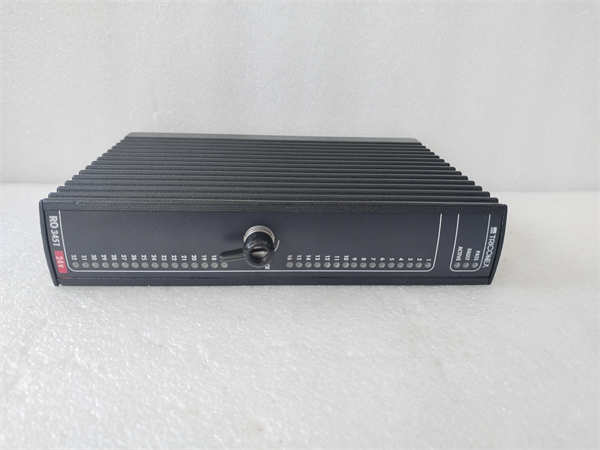

3451 TRICONEX
Product Features
High reliability:Adopting redundant design to ensure system reliability,suitable for safety critical applications.
Multi channel:Supports multiple relay output channels and can simultaneously control multiple external devices.
Flexible configuration:It can be flexibly configured through software to adapt to different application requirements.
Diagnostic function:With comprehensive diagnostic capabilities,it facilitates users in fault diagnosis and maintenance.
Isolation function:There is isolation between input and output,which improves the security of the system.
Product parameters and specifications
Number of channels:8
Contact type:normally open,normally closed,or switching contact
Load capacity:usually supports larger load currents and voltages
Supply voltage:24VDC
Working temperature:0℃~55℃
Relative humidity:5%~95%(non condensing)

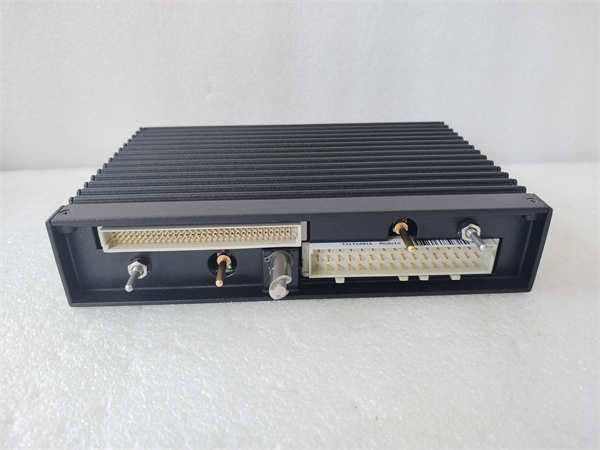

3451 TRICONEX
Product function
Safety interlock:In safety instrumented systems,it is used to implement safety interlock functions and prevent dangerous events from occurring.
Emergency stop:In case of emergency,trigger the emergency stop signal to cut off the source of danger.
Alarm output:Output an alarm signal to indicate the fault or abnormal state of the device.
Control external devices:Control external devices such as motors and valves to achieve automated control.
Product Usage
Petrochemical industry:a safety interlock system used in the production process of petrochemical industry.
Electricity:Used for the safety protection and control of the power system.
Metallurgy:A safety interlock system used in the metallurgical production process.
Other industrial fields:Suitable for any industrial control situation that requires high reliability and safety.

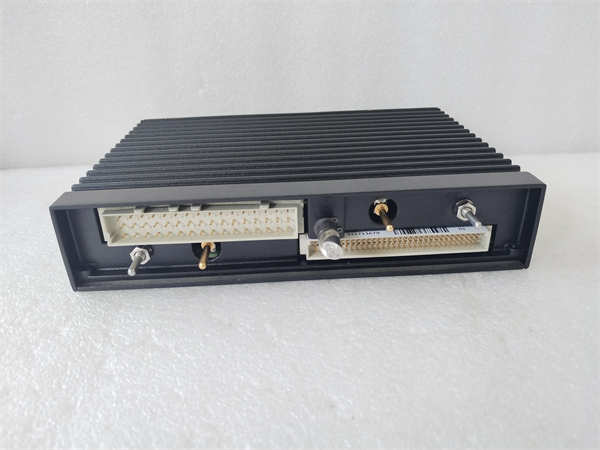

3451 TRICONEX
application area
Safety Instrumented System(SIS)
Process Control System(DCS)
emergency shutdown system
Fire and explosion prevention system
Series and Features
Series:TriconeX 3451 is part of the Triconex Safety Instrumented System.
Features:High reliability,modular design,flexible configuration,easy maintenance.
summary
The TRICONEX 3451 relay output module is a reliable product designed specifically for safety critical applications.It plays an important role in the field of industrial automation,especially in safety instrumented systems.By converting digital signals into mechanical switch actions,control of external devices is achieved,ensuring the safety of the production process.
